CM600SG feels just as comfortable by the poolside as it does in the pouring rain. With a height adjustable stainless steel pole protected by galvanized and UV-resistant finishes, this outdoor ceiling TV mount resists corrosion when left in even the harshest of environments. Included stainless steel Security Torx TV screws and four fixed tilt increments prevent tampering to keep your investment safe. A pivoting mounting plate gives you the ability to mount CM600SG onto flat, angle, or vertical surfaces expanding the possibilities of where a TV up to 70” can be hung. Designed to handle the elements for years to come, CM600SG is the benchmark for all other outdoor ceiling TV mounts.
ANGLED CEILINGS

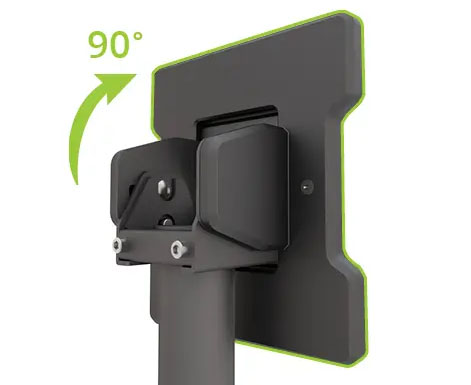

To accommodate sloped ceilings and support beams, swing the extension pole up to 90° and lock it in place at the preferred angle. This also allows the outdoor TV ceiling mount to be installed on a wall, if needed.
ADJUSTABLE HEIGHT

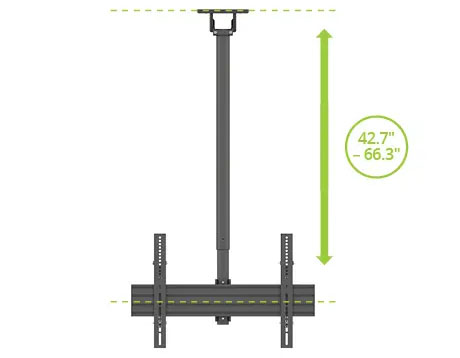

Ensure your TV is positioned at an ideal height by setting the center of your screen between 42.7" to 66.3" from the ceiling. Adjustments can be made in 2" increments.
ROTATE, SWIVEL & TILT

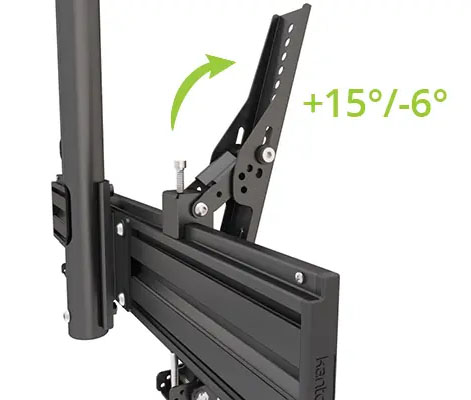

Along with 360° of rotation, this outdoor TV ceiling mount offers four discrete tilt options. In 5° increments, angle the TV brackets up to 15° forward to improve line-of-sight, or tilt them 6° backward to compensate for potential lean.
INTEGRATED CABLE MANAGEMENT

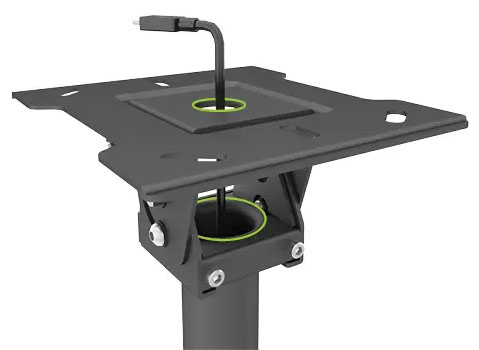

The extension pole's hollow core provides an unobstructed path to route your cables, while an opening in the mounting plate allows them to continue through the ceiling for a clean and professional setup.
Features:
• Outdoor-rated finish and stainless-steel hardware
• 110 lb weight capacity
• Recommended TV Size: 37" to 70"
• Extends 42.7" - 66.3"
• Universal interface fits most TVs (75x75 to 600x400)
• Integrated cable management keeps cables safe and out of sight
Details
Tilt: |
-6° / +15° |
VESA Mounting Patterns: |
75mm x 75mm to 600mm x 400mm (any size in between these will work) |
Minimum TV Size: |
37" |
Maximum TV Size: |
70" |
Weight Capacity: |
110 lbs |
Color: |
Black |
Hardware: |
All mounting hardware for wood stud and concrete installation is included |
Warranty: |
5 Years |
Helpful Downloads: |
Kanto CM600SG Product Sheet |
