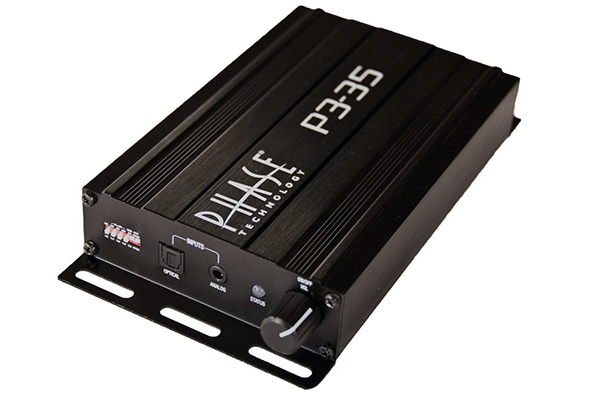

Phase Technology's P3-35 mini-amp is a powerful and feature-rich amplifier in a small package. The P3-35 features digital and analog inputs, Bluetooth functionality (so you can stream content right from your smart phone), IR learning (so you can program your television remote to control the amp's volume), and even a line-level subwoofer output option, allowing you to integrate any powered subwoofer into your set-up. The P3-35 even features Dolby Digital decoding, ensuring that you'll never lose the surround content in any Dolby Digital mixes.
The P3-35 amp measures only 1.25" by 4", so it's small enough to place just about anywhere. Please note this amp is not weatherproof. It must be stored in a safe location out of the weather.
APPLICATIONS
The P3-35 is ideal for powering passive soundbars. With its built-in Dolby Digital decoding and Bluetooth connectivity, it offers the functionality of much larger, more complex pieces of equipment in a small form factor. Its small size allows integrators to easily place it near the audio source without taking up valuable cabinet space. For commercial applications, the P3-35 is a good complement for digital signage installations, allowing localized amplification of speakers associated with a digital signage display.
Key Features:
• 2 Channels at 50W Per Channel
• 3 Channels at 35W Per Channel
• Digital & Analog Inputs
• Bluetooth and IR Support
Details
Max Gain: |
34 dB (8 ohms) |
Power Output: |
2 Channel: 50 watts RMS/CH >1% @ 8 ohms, 55 watts @ 4 ohms; 3 Channel: 35 watts RMS/CH >1% @ 8 ohms, 40 watts @ 4 ohms |
Inputs: |
10K Unbalanced line input stereo analog, Optical digital 2 or 3 channel, RS232 control, Bluetooth, External IR |
Channels: |
Up to 3 |
Crossover Frequency: |
120 Hz @ 12 dB/octave |
Crossover Type: |
High Pass/Low Pass |
Protection Features: |
Amplifier - Soft Clipping, Short Circuit/Overload, Thermal overload protection; Power Supply - Thermal protectioin, Over current protection, Short circuit protection |
Max Current Consumption 120V: |
Input: 100-240VAC 50/60 Hz, 1.7A |
Dimensions: |
1.25" H x 3.9" W x 7.25 L |
Product Weight: |
.93 lbs |
Warranty: |
10 Years |
Helpful Downloads: |
P3-35 Spec Sheet P3-35 Owner's Manual |
